Industrial weighing hardware & software
R&D Weighing
Load cells from 5 kg to 200 t, weight transmitters, batching controllers and in-line checkweighers — plus Skyris software to bring the weighing data together.
Hardware and software
Weighing built into the process, not bolted on beside it
R&D Weighing supplies the components that put weight into a control system: the load cell under the vessel, the transmitter that puts it on the network, the controller that runs the batch and the checkweigher that proves the pack. We supply, install and calibrate the chain end to end.
Weighing hardware
The full weighing chain
From the sensor under the load to the controller on the panel door.
Load cells
High-accuracy shear beam and single-point load cells from 5 kg to 200 t, for vessels, hoppers, silos and platforms.
Weight transmitters
Panel-mount and DIN-rail transmitters with analogue, RS485 Modbus, Profibus and Profinet outputs.
Weighing controllers
Touchscreen HMI controllers for batching, filling and check-weighing, with recipe handling and reporting.
In-line checkweighers
Check-weighing at 300+ packs per minute with automatic rejection and compliance logging.
Packing & process weighers
High-speed weighers engineered for granules, powders and pellets in food and chemical production.
OEM & machine builder solutions
Weighing cores with documented registers and volume pricing for machine builders and system integrators.
Skyris software
Skyris weighing software
Skyris is the software layer over the weighing hardware — it turns individual instruments into a data set you can report on, audit and trend.
Centralised weighing data
Weight records collected from connected instruments into one place instead of per-machine printouts.
Reporting & trending
Production, batch and check-weigh reporting, with trends that expose drift before it becomes a rejection.
Compliance records
Retained records to support legal metrology, customer audits and internal quality requirements.
Multi-instrument overview
One view across the weighing points on a line, a plant or multiple sites.
How ACS supports it
Supplied, installed and certified
Everything we supply can be commissioned, verified and re-calibrated by our own SANAS-accredited laboratory, with metrologically traceable certificates back to national measurement standards held by NMISA.
Load cell calibration to ISO 376 and OIML R 60
Calibration of indicators, displays and transmitters
On-site verification of installed vessel and hopper systems
Scales and balances calibrated to OIML R 76 and SANS
Commissioning and operator hand-over
Scheduled re-calibration so certificates never lapse
Fault-finding on installed weighing systems
Spares and replacement load cells
In service
Weighing built into the plant

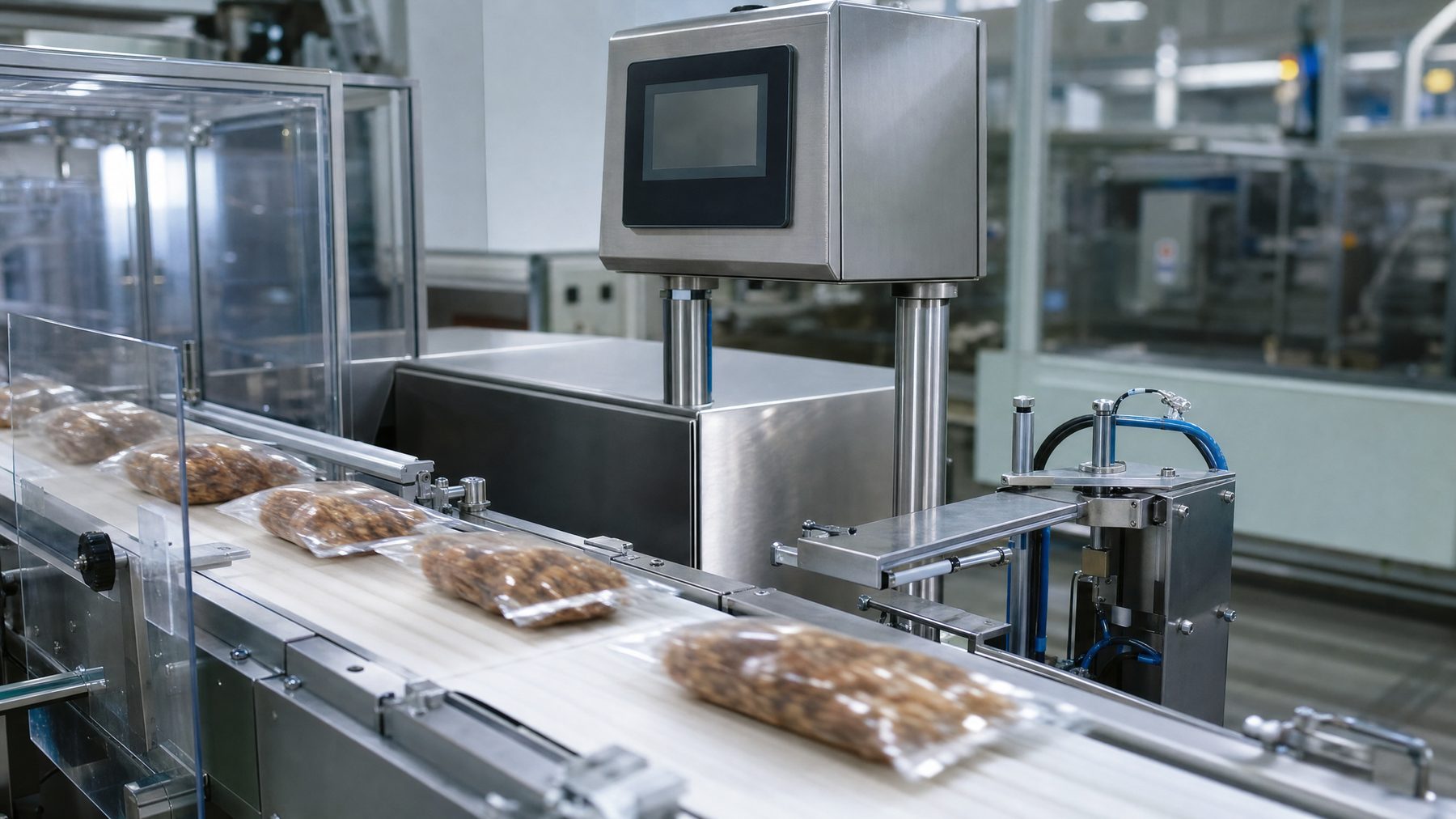

In-line check-weighing
Sealed packs check-weighed on the move at 300+ packs per minute, with automatic rejection.
Access Calibration Services
Specifying a weighing system?
Tell us the capacity, the accuracy class and the control system it must talk to. We will quote the hardware, the installation and the calibration together.
